April 08, 2025
Do I Need a Pond Aerator Cover?
Article includes HIBLOW heat testing results
If you own a pond aerator, you might be wondering whether you need a cover for it. If your system uses a rocking piston, rotary vane, or regenerative blower, then investing in a pond aerator cover is a smart move. These technologies aren’t designed to withstand direct exposure to the elements. Rain, snow, dust, and UV rays can all damage components and potentially shorten the lifespan of the unit.
While each type of aerator varies in durability and heat output, most benefit from a weather-resistant, well-ventilated enclosure that offers protection without restricting airflow.
Do Linear Diaphragm Air Pumps Need a Pond Aerator Cover?
HIBLOW aerators and other linear diaphragm brands (though not all) are UL-rated for outdoor use, meaning they can operate without a pond aerator cover and still withstand the elements. Most HIBLOW pond aerators feature an aluminum housing that essentially acts as the enclosure.

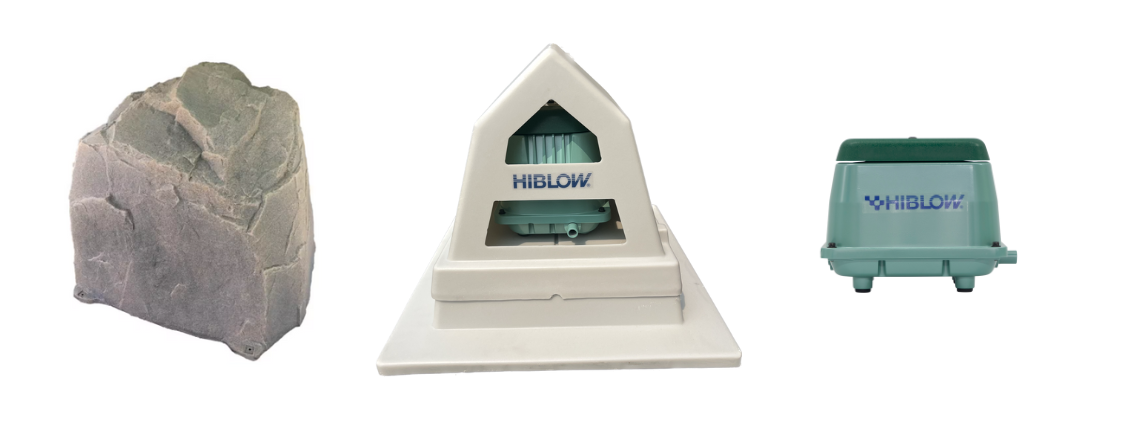

However, many in the pond industry believe that a cover is necessary and often use fake rocks or other decorative enclosures that may restrict airflow. While some enclosures can be beneficial, others can actually reduce the lifespan of the aerator.
Heat Is the Enemy
HIBLOW’s diaphragms are made from EPDM rubber, which wears and ruptures more quickly in hot environments. Other rubber components, such as base and filter gaskets, also degrade faster under heat stress. While you can’t control the outside temperature, you can position your pump to maximize its longevity. Keeping the aerator out of direct sunlight and ensuring proper air circulation is the best way to extend its life.
Heat Test – Enclosures vs. Stand-Alone Setups
HIBLOW USA conducted a heat test, measuring temperatures for three different types of enclosures and for a HIBLOW air pump placed in both shade and direct sunlight.
Testing Conditions:
-
Temperatures were measured at the top and bottom of each setup every 30 minutes between 10:30 AM and 2:30 PM.
-
Starting temperature at 10:30 AM: 83°F (Real Feel: 94°F); ending temperature at 2:30 PM: 86°F (Real Feel: 97°F).
-
Location: Saline, MI.
Results at 2:30 PM (warmest time of the day):
| Type | Temperature at the top | Temperature at the Bottom | Average Temperature | |
| A | No enclosure in the shade | 116.3 °F | 129.9 °F | 123.1 °F |
| B | Enclosure with 2 open ends | 122.9 °F | 127.7 °F | 125.3 °F |
| C | No enclosure directly in the sun | 123.1 °F | 129.2 °F | 126.2 °F |
| D | Fake rock without vents | 132.2 °F | 136.0 °F | 134.1 °F |
| E | Riser top without vents | 136.8 °F | 149.5 °F | 143.2 °F |
Temperature Rankings (Coolest to Hottest):
#1 – A: No enclosure, in the shade.
No surprise here—this setup offers the best of both worlds: protection from the sun and unrestricted airflow. People often place pumps on the north side of the house, under trees, in sheds, in boat houses, or under docks.
#2 – B: Enclosure with two open ends.
Offers good airflow while keeping the aerator shaded. This is a quality setup.
#3 – C: No enclosure, in direct sun.
This setup in direct sunlight shows that airflow may be more important than shade alone.
#4 – D: Fake rock without vents.
Although visually appealing, this setup restricts ventilation and significantly raises internal temperatures. Your diaphragms will degrade faster and the motor will have a reduced life.
#5 – E: Riser top without vents.
More common in the septic industry, this concept is also used in the pond market, where aerators are buried in the ground in an enclosure. This is the worst-case scenario, as the pump ‘bakes’ inside and is also exposed to water. Although a HIBLOW linear diaphragm air pump is built to withstand the elements, it is not designed to be submerged in water.
The Bottom Line:
To extend the life of your pond aerator and save money, aim to maximize airflow and keep the pump shaded. If you choose to use a pond aerator cover, ensure it’s ventilated. Drill holes in decorative covers or prop them up to allow air circulation from below.
If you have any questions about pond aerator covers or your HIBLOW air pump, please give us a call—we’d be happy to offer suggestions to improve your setup.
