HIBLOW HP-200 – The King of the Hill

Single motor high flow linear diaphragm aerators – a step above the rest More »

In many onsite treatment systems, the air pump is the only moving part in the overall septic system, so it must be dependable. Working 24 hours a day and through all four seasons of the year — HIBLOW linear air pumps set the industry standard for reliability and service life.

Built In-House

We design, engineer, and manufacture all HIBLOW pumps in our own facilities. We don’t buy pumps from other companies and re-brand them. And we don’t use contract manufacturers.

Fully Tested

Every HIBLOW linear air pump is fully tested and certified for quality in your application before it is packaged and shipped to you from one of our factories.

Fully Covered

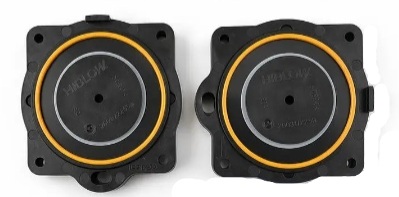

If you read closely, the warranties for most competitive pumps don’t cover the diaphragms. We do. After all, what good is a warranty if it doesn’t include the working parts?

Whisper Quiet

HIBLOW homeowner models are below 36 dBA. Larger commercial units are under 48 dBA. Whether installed right next to the patio, or even indoors, your customer won’t complain about noise.

To purchase a HIBLOW pump, please contact us for your closest, or most convenient distributor. If you are unsure which HIBLOW pump model you need, please contact your treatment system manufacturer.

Aerobic Septic System Aeration Pumps and Accessories

Standard Pump Models	Max Flow (lpm)Max Flow (cfm)	Recommended Operating Pressure/Vac (kPa)	Power Consumption. (Watts)	Noise Level (dBA @ 1m.)	Weight (kg)Weight (lbs)
Pressure Standard Pump Models
DUO Series Select a model for full specifications Select a model for full specifications
DUO 60	1003.5	202.9	39	35	613.2
DUO 60
Product Details – DUO 60 Max Flow (lpm)Max Flow (cfm)100 3.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)39 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)6 13.2 Features Dual outlet ports with integrated cam-style valves and programmable timer controller to alternate between two aeration processes Available with integral low-pressure alarms. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Equipped with thermal overload protection Includes pressure tap location for external alarm sensor Download Specifications
DUO 80	1103.8	253.6	58	35	613.2
DUO 80
Product Details – DUO 80 Max Flow (lpm)Max Flow (cfm)110 3.8 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)58 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)6 13.2 Features Dual outlet ports with integrated cam-style valves and programmable timer controller to alternate between two aeration processes Available with integral low-pressure alarms. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Equipped with thermal overload protection Includes pressure tap location for external alarm sensor Download Specifications
HP Alarm Units Select a model for full specifications Select a model for full specifications
HP-40A	602.1	202.9	38	32	6.113.4
HP-40A
Product Details – HP-40A Max Flow (lpm)Max Flow (cfm)60 2.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)38 Noise Level (dBA @ 1m.)32 Weight (kg)Weight (lbs)6.1 13.4 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12 to 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-60A	1003.5	253.6	51	35	7.416.2
HP-60A
Product Details – HP-60A Max Flow (lpm)Max Flow (cfm)100 3.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)51 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)7.4 16.2 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-80A	1204.2	253.6	71	39	7.416.2
HP-80A
Product Details – HP-80A Max Flow (lpm)Max Flow (cfm)120 4.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)71 Noise Level (dBA @ 1m.)39 Weight (kg)Weight (lbs)7.4 16.2 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-100A	1103.8	253.6	100	38	8.919.5
HP-100A
Product Details – HP-100A Max Flow (lpm)Max Flow (cfm)110 3.8 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)100 Noise Level (dBA @ 1m.)38 Weight (kg)Weight (lbs)8.9 19.5 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-100LLA	1304.5	304.3	75	42	9.420.6
HP-100LLA
Product Details – HP-100LLA Max Flow (lpm)Max Flow (cfm)130 4.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)75 Noise Level (dBA @ 1m.)42 Weight (kg)Weight (lbs)9.4 20.6 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-120LLA	1505.2	304.3	100	42	9.420.6
HP-120LLA
Product Details – HP-120LLA Max Flow (lpm)Max Flow (cfm)150 5.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)100 Noise Level (dBA @ 1m.)42 Weight (kg)Weight (lbs)9.4 20.6 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-120A	1505.2	253.6	125	40	8.919.5
HP-120A
Product Details – HP-120A Max Flow (lpm)Max Flow (cfm)150 5.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)125 Noise Level (dBA @ 1m.)40 Weight (kg)Weight (lbs)8.9 19.5 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-150A	2007.0	304.3	155	47	919.8
HP-150A
Product Details – HP-150A Max Flow (lpm)Max Flow (cfm)200 7.0 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)155 Noise Level (dBA @ 1m.)47 Weight (kg)Weight (lbs)9 19.8 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-200A	2007.0	304.3	250	48	919.8
HP-200A
Product Details – HP-200A Max Flow (lpm)Max Flow (cfm)200 7.0 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)250 Noise Level (dBA @ 1m.)48 Weight (kg)Weight (lbs)9 19.8 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-Series Select a model for full specifications Select a model for full specifications
HP-20	321.1	152.1	17	32	3.27.0
HP-20
Product Details – HP-20 Max Flow (lpm)Max Flow (cfm)32 1.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)152.1 Power Consumption (Watts)17 Noise Level (dBA @ 1m.)32 Weight (kg)Weight (lbs)3.2 7.0 Features Standard model available only for 120VAC applications. Pumps equipped with thermal overload protection. Download Specifications
HP-40	802.8	202.9	38	32	5.712.5
HP-40
Product Details – HP-40 Max Flow (lpm)Max Flow (cfm)80 2.8 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)38 Noise Level (dBA @ 1m.)32 Weight (kg)Weight (lbs)5.7 12.5 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-60	1003.5	253.6	51	35	715.4
HP-60
Product Details – HP-60 Max Flow (lpm)Max Flow (cfm)100 3.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)51 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)7 15.4 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-80	1204.2	253.6	71	36	715.4
HP-80
Product Details – HP-80 Max Flow (lpm)Max Flow (cfm)120 4.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)71 Noise Level (dBA @ 1m.)36 Weight (kg)Weight (lbs)7 15.4 Features Available with low pressure alarms for 120VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Dual port models available with internal flow switching solenoids and programmable timers for aerator/skimmer applications. Contact us for custom voltage applications, including 24 – 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-100	1103.8	253.6	100	38	8.518.7
HP-100
Product Details – HP-100 Max Flow (lpm)Max Flow (cfm)110 3.8 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)100 Noise Level (dBA @ 1m.)38 Weight (kg)Weight (lbs)8.5 18.7 Features Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-100LL	1304.5	304.3	75	42	919.8
HP-100LL
Product Details – HP-100LL Max Flow (lpm)Max Flow (cfm)130 4.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)75 Noise Level (dBA @ 1m.)42 Weight (kg)Weight (lbs)9 19.8 Features Available with low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-120	1505.2	253.6	125	40	8.518.7
HP-120
Product Details – HP-120 Max Flow (lpm)Max Flow (cfm)150 5.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)125 Noise Level (dBA @ 1m.)40 Weight (kg)Weight (lbs)8.5 18.7 Features Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-120LL	1505.2	304.3	100	45	919.8
HP-120LL
Product Details – HP-120LL Max Flow (lpm)Max Flow (cfm)150 5.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)100 Noise Level (dBA @ 1m.)45 Weight (kg)Weight (lbs)9 19.8 Features Available with low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-150	2007.0	304.3	155	47	919.8
HP-150
Product Details – HP-150 Max Flow (lpm)Max Flow (cfm)200 7.0 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)155 Noise Level (dBA @ 1m.)47 Weight (kg)Weight (lbs)9 19.8 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-200	2408.4	304.3	250	48	919.8
HP-200
Product Details – HP-200 Max Flow (lpm)Max Flow (cfm)240 8.4 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)250 Noise Level (dBA @ 1m.)48 Weight (kg)Weight (lbs)9 19.8 Features Available with integral low-pressure alarms for 120VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
XP Alarm Series Select a model for full specifications Select a model for full specifications
XP-40A	702.4	202.9	24	30	4.19.0
XP-40A
Product Details – XP-40A Max Flow (lpm)Max Flow (cfm)70 2.4 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)24 Noise Level (dBA @ 1m.)30 Weight (kg)Weight (lbs)4.1 9.0 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12 to 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
XP-60A	903.1	233.3	40	35	4.39.4
XP-60A
Product Details – XP-60A Max Flow (lpm)Max Flow (cfm)90 3.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)233.3 Power Consumption (Watts)40 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)4.3 9.4 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12 to 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
XP-80A	1003.5	273.9	64	35	4.39.4
XP-80A
Product Details – XP-80A Max Flow (lpm)Max Flow (cfm)100 3.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)273.9 Power Consumption (Watts)64 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)4.3 9.4 Features Integral low-pressure alarm Standard UL approved 120 VAC models Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12 to 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
XP Series Select a model for full specifications Select a model for full specifications
XP-40	702.4	202.9	24	30	4.19.0
XP-40
Product Details – XP-40 Max Flow (lpm)Max Flow (cfm)70 2.4 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)24 Noise Level (dBA @ 1m.)30 Weight (kg)Weight (lbs)4.1 9.0 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
XP-60	903.1	233.3	40	35	4.39.4
XP-60
Product Details – XP-60 Max Flow (lpm)Max Flow (cfm)90 3.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)233.3 Power Consumption (Watts)40 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)4.3 9.4 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
XP-80	1003.5	273.9	64	35	4.39.4
XP-80
Product Details – XP-80 Max Flow (lpm)Max Flow (cfm)100 3.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)273.9 Power Consumption (Watts)64 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)4.3 9.4 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications

Also Available: Manifolds for HP Series

Manifolds for connecting multiple HIBLOW HP Series pumps in parallel for higher flows. Enables connection of up to 5 pumps in parallel with a single exhaust port.
