Medical & Laboratory

Medical Device and Laboratory Equipment OEM Aeration Units

News

Tuesday, January 07th

Endoscope Drying Air Compressor

Application spotlight: HIBLOW air pumps used in forced air endoscope drying cabinets More »

We have manufactured air pumps for the medical and laboratory industries for over 30 years. We know that precision, safety, and reliability are paramount for the components utilized in your products and systems.

Whether your system or device requires vacuum or pressure, HIBLOW can provide a pneumatic solution that fits your specific application.

Tailored Manufacturing

From 5V through 230V, we can tailor a linear pump to fit your electrical needs. Our business is built upon OEM relationships. We have the experience and capacity for large production volumes, while retaining the flexibility of a custom manufacturer.

Reliable and Efficient

HIBLOW’s linear pump technology is oil and lubrication free, so there is no worry of contamination.

The power consumption of our entire product line is extremely efficient, with the majority of our medical and laboratory pumps consuming less energy than a standard light bulb.

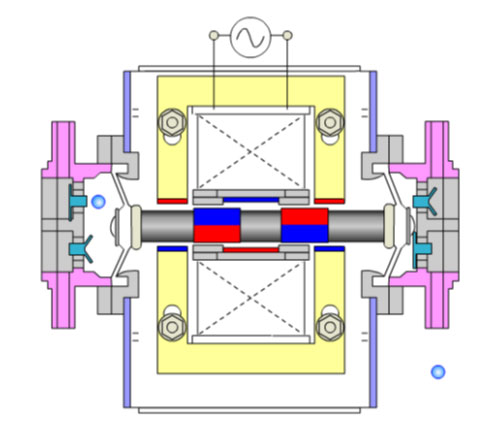

Watch a demonstration of how our linear pump works »

Flexible Installation

Our VP series linear pumps have multiple options for the location of inlet and outlet ports—offering flexibility for the installation of our pump in your cabinet or system.

Airtronics

Our Airtronics team continues to develop valve and controller technology that allows one HIBLOW air pump to serve multiple functions within an overall system. Our engineering team can assist with you with integrating these functions into your system and controls.

Please contact us for pricing and availability of pumps, or to arrange for an evaluation unit for testing. If you are looking for replacement pumps for a piece of laboratory or medical equipment you own, please contact the system manufacturer.

Medical and Laboratory Pumps

Standard Pump Models	Max Flow (lpm)Max Flow (cfm)	Recommended Operating Pressure/Vac (kPa)	Power Consumption. (Watts)	Noise Level (dBA @ 1m.)	Weight (kg)Weight (lbs)
Pressure Standard Pump Models
C-Series Select a model for full specifications Select a model for full specifications
C-5BN	100.3	202.9	8.5	34	.71.5
C-5BN
Product Details – C-5BN Max Flow (lpm)Max Flow (cfm)10 0.3 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)8.5 Noise Level (dBA @ 1m.)34 Weight (kg)Weight (lbs).7 1.5 Features Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including DC system applications using external PWM controllers for modulating pump flow. Download Specifications
CD-8	170.6	202.9	8.5	34	.71.5
CD-8
Product Details – CD-8 Max Flow (lpm)Max Flow (cfm)17 0.6 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)8.5 Noise Level (dBA @ 1m.)34 Weight (kg)Weight (lbs).7 1.5 Features Our CD-8 is a C-5BN chassis with enhanced internal sealing for applications requiring improved pneumatic isolation from ambient contamination and the pump’s energized components. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including DC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-Series Select a model for full specifications Select a model for full specifications
HP-20	321.1	152.1	17	32	3.27.0
HP-20
Product Details – HP-20 Max Flow (lpm)Max Flow (cfm)32 1.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)152.1 Power Consumption (Watts)17 Noise Level (dBA @ 1m.)32 Weight (kg)Weight (lbs)3.2 7.0 Features Standard model available only for 120VAC applications. Pumps equipped with thermal overload protection. Download Specifications
HP-40	802.8	202.9	38	32	5.712.5
HP-40
Product Details – HP-40 Max Flow (lpm)Max Flow (cfm)80 2.8 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)202.9 Power Consumption (Watts)38 Noise Level (dBA @ 1m.)32 Weight (kg)Weight (lbs)5.7 12.5 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-60	1003.5	253.6	51	35	715.4
HP-60
Product Details – HP-60 Max Flow (lpm)Max Flow (cfm)100 3.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)51 Noise Level (dBA @ 1m.)35 Weight (kg)Weight (lbs)7 15.4 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 24 to 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-80	1204.2	253.6	71	36	715.4
HP-80
Product Details – HP-80 Max Flow (lpm)Max Flow (cfm)120 4.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)71 Noise Level (dBA @ 1m.)36 Weight (kg)Weight (lbs)7 15.4 Features Available with low pressure alarms for 120VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Dual port models available with internal flow switching solenoids and programmable timers for aerator/skimmer applications. Contact us for custom voltage applications, including 24 – 48 VDC system applications using external PWM controllers for modulating pump flow. Download Specifications
HP-100LL	1304.5	304.3	75	42	919.8
HP-100LL
Product Details – HP-100LL Max Flow (lpm)Max Flow (cfm)130 4.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)75 Noise Level (dBA @ 1m.)42 Weight (kg)Weight (lbs)9 19.8 Features Available with low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-120LL	1505.2	304.3	100	45	919.8
HP-120LL
Product Details – HP-120LL Max Flow (lpm)Max Flow (cfm)150 5.2 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)100 Noise Level (dBA @ 1m.)45 Weight (kg)Weight (lbs)9 19.8 Features Available with low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-150	2007.0	304.3	155	47	919.8
HP-150
Product Details – HP-150 Max Flow (lpm)Max Flow (cfm)200 7.0 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)155 Noise Level (dBA @ 1m.)47 Weight (kg)Weight (lbs)9 19.8 Features Available with integral low-pressure alarms for 120 VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
HP-200	2408.4	304.3	250	48	919.8
HP-200
Product Details – HP-200 Max Flow (lpm)Max Flow (cfm)240 8.4 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)304.3 Power Consumption (Watts)250 Noise Level (dBA @ 1m.)48 Weight (kg)Weight (lbs)9 19.8 Features Available with integral low-pressure alarms for 120VAC applications. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 48 VDC system applications using external PWM controllers for modulating pump flow. Includes pressure tap location for external alarm sensor Download Specifications
KP (S) Series Select a model for full specifications Select a model for full specifications
KP-4020S	431.5	-22.7-3.2	18	31	3.88.3
KP-4020S
Product Details – KP-4020S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
KP-5030S	541.9	-26.9-3.9	27	34	3.88.3
KP-5030S
Product Details – KP-5030S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
KP-6035S	612.1	-27.6-4.0	35	36	3.88.3
KP-6035S
Product Details – KP-6035S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
KP-Series Select a model for full specifications Select a model for full specifications
KP-4020	371.3	273.9	18	31	3.88.3
KP-4020
Product Details – KP-4020 Max Flow (lpm)Max Flow (cfm)37 1.3 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)273.9 Power Consumption (Watts)18 Noise Level (dBA @ 1m.)31 Weight (kg)Weight (lbs)3.8 8.3 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
KP-5030	421.4	334.7	27	34	3.88.3
KP-5030
Product Details – KP-5030 Max Flow (lpm)Max Flow (cfm)42 1.4 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)334.7 Power Consumption (Watts)27 Noise Level (dBA @ 1m.)34 Weight (kg)Weight (lbs)3.8 8.3 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
KP-6035	511.8	385.5	35	36	3.88.3
KP-6035
Product Details – KP-6035 Max Flow (lpm)Max Flow (cfm)51 1.8 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)385.5 Power Consumption (Watts)35 Noise Level (dBA @ 1m.)36 Weight (kg)Weight (lbs)3.8 8.3 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
NS-Series Select a model for full specifications Select a model for full specifications
NS-30	451.5	81.1	12	45	1.22.6
NS-30
Product Details – NS-30 Max Flow (lpm)Max Flow (cfm)45 1.5 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)81.1 Power Consumption (Watts)12 Noise Level (dBA @ 1m.)45 Weight (kg)Weight (lbs)1.2 2.6 Features Quiet and light weight Standard UL listed models available for 120 and 230 VAC. Pumps equipped with thermal overload protection. Download Specifications
VP (S) Series Select a model for full specifications Select a model for full specifications
VP-4020S	461.6	-23.4-3.3	18	43	1.954.2
VP-4020S
Product Details – VP-4020S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-5030S	572.0	-27.6-4.0	27	44	1.954.2
VP-5030S
Product Details – VP-5030S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-6035S	652.2	-31-4.4	35	45	1.954.2
VP-6035S
Product Details – VP-6035S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-7045S	702.4	-25-3.6	43	45	1.954.2
VP-7045S
Product Details – VP-7045S Max Flow (lpm)Max Flow (cfm) Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)0 Power Consumption (Watts) Noise Level (dBA @ 1m.) Weight (kg)Weight (lbs) Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Energized component isolation from pumped fluid for “S” models. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-Series Select a model for full specifications Select a model for full specifications
VP-4020	421.4	263.7	18	43	1.954.2
VP-4020
Product Details – VP-4020 Max Flow (lpm)Max Flow (cfm)42 1.4 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)263.7 Power Consumption (Watts)18 Noise Level (dBA @ 1m.)43 Weight (kg)Weight (lbs)1.95 4.2 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-5030	541.9	324.6	27	44	1.954.2
VP-5030
Product Details – VP-5030 Max Flow (lpm)Max Flow (cfm)54 1.9 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)324.6 Power Consumption (Watts)27 Noise Level (dBA @ 1m.)44 Weight (kg)Weight (lbs)1.95 4.2 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-6035	602.1	385.5	35	45	1.954.2
VP-6035
Product Details – VP-6035 Max Flow (lpm)Max Flow (cfm)60 2.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)385.5 Power Consumption (Watts)35 Noise Level (dBA @ 1m.)45 Weight (kg)Weight (lbs)1.95 4.2 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
VP-7045	622.1	253.6	41	46	1.954.2
VP-7045
Product Details – VP-7045 Max Flow (lpm)Max Flow (cfm)62 2.1 Max Cont Operating Pressure (kPa)Max Cont Operating Pressure (psi)253.6 Power Consumption (Watts)41 Noise Level (dBA @ 1m.)46 Weight (kg)Weight (lbs)1.95 4.2 Features Optional port locations for maximum design flexibility. Standard UL approved 120 VAC models, and 230 VAC CE compliant models available. Pumps equipped with thermal overload protection. Contact us for custom voltage applications, including 12-48 VDC system applications using external PWM controllers for modulation pump flow. Download Specifications
