Adjustable Height Diffuser

For Cost Efficient Deeper Pond Aeration

Applications:

Recreation and fishing ponds
Golf course ponds
Irrigation ponds
Farm ponds
Lagoons
Lakes

Adjustable Height Diffuser by Hiblow USA

Save money: Use HIBLOW linear diaphragm aerators for deeper water applications

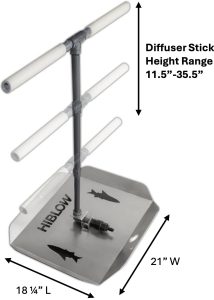

6 height options ranging from 11.5″ to 35.5″ enables HIBLOW aerators to be used for pond aeration as deep as 13′ displacing expensive rocking piston technology which is commonly used for depths exceeding 8-10′.
Most HIBLOW aerators run on 100 watts or less using less than 20% of the electricity of a rocking piston
HIBLOW aerators are easier and more cost efficient to repair as compared to a rocking piston

Keeps diffuser sticks out of the muck/ vegetation

Keeps a hole in the ice without mixing the bottom of the pond

Allows fish to take refuge in the warmer water at the bottom of the pond in the winter

Medium bubble diffuser advantage

(2) 12″ HIBLOW medium bubble diffuser sticks span 25.5″ creating a wide plume of bubbles
Adds dissolved oxygen while maximizing water circulation
Self cleaning with 40 LPM of continuous 24/7, 365 air flow

Complete Package/ Quick Assembly

The 8 lb. rust resistant stainless steel base plate design stabilizes, sinks, and keeps the diffuser submerged — no need to go to the store to buy gravel or sand.
The complete package includes everything you need for quick and easy installation

Units Include:

Stainless Steel base plate assembly
Installed check valve
Barbs for 3/8″, 1/2″, and 5/8″ ID tubing
Hose clamp
(3) PVC extenders to adjust diffuser height
(2) 12″ medium bubble diffuser sticks
Rope
